Quality Medical Supplies 1.5ata Hyperbaric Chamber Soft sitting type chamber ST2200 cost of home hyperbaric chamber

ST2200

Portable, easy to carry, install and operate.

Inside the chamber, you can listen to music,

read a book, use cell phones or laptops

Size:

220x70x110cm(89″x28″x43″)

Pressure:

1.3ATA

1.4ATA

1.5ATA

Model:

ST2200

Product Detail

Product Tags

225*Φ80cm (89*32inches)

225*70*110cm (89*28*43inches)

lying type soft chamber

sitting type soft chamber

without folding chair

with folding chair

2 zipper seal

3 zipper seal

7 large transparent viewing windows

4 large transparent viewing windows

Accommodate 1 person

Accommodate 2 person

Chamber material:

TPU + inner pocket nylon fiber (TPU coating + high strength nylon fiber) TPU coating plays a good sealing role, high-strength nylon fiber pressure resistance. And the material is non-toxic.After the SGS test.Other companies are PVC material, although not visible from the appearance, easy to age, brittle, not durable, poor quality.

Chamber Pressure:

ST801 model have three pressure mode for choose.

1.3ATA is the most people choose,

1.4ATA and 1.5ATA can be optional.

Sealing system:

Soft silicone + Japanese YKK zipper:

(1) daily sealing is good.

(2)when the power failure, the machine stops, the silicone material due to its own weight is relatively heavy, thus naturally sagging, and then the formation of a gap between the zipper, this time the air will be in and out, will not lead to suffocation problems.

Splicing pure TPU transparent window:
We use high-frequency heat welding (high-frequency welding) technology, non-composite, one-piece molding, the use of high-cost large mold.
Other companies' products are composite, using small molds, easy to leak.

Automatic Pressure Relief Valves:
The chamber pressure reaches the set pressure automatically constant, maintaining a steady state of pressure, eliminating pain in the ear and keeping the air oxygen flow. The higher the pressure, the greater the spring strength and hard ness required. The precision is high, accurate, and quiet.

Emergency Pressure Relief Valve:
(1) Realize the fast exit within 30S
(2) When the automatic constant pressure valve fails, it can achieve the role of pressure stabilization and pressure relief.

Manual pressure reducing valve:
(1) Adjustable both inside and outside.
(2) There are 5 levels of adjustment, and 5 holes can be adjusted to lift the pressure and relieve the discomfort of the ears.
(3) 1.5ATA and below can use it and open to 5 holes to achieve fast exit from the chamber (the feeling of the lungs is like surfacing from the bottom of the sea). But 2ATA and 3ATA are not recommended for this.

Mattress material:
(1) 3D material, millions of support points, perfectly fit the body curve, support the body curve, the human body for all-round support. In all directions, to achieve a comfortable sleep state.
(2) hollow three-dimensional structure, six-sided breathable, washable, easy to dry.
(3) The material is non-toxic, friendly to the environment, and passed the RPHS international test.

Metal Frame:
Stainless steel material, long service life, electroplating does not rust, truncated for easy transportation and carrying.

Folding chair:

Flexible and foldable structure, small size and easy to move.

Gold relies on the lying angle to release back pressure.

Ergonomic design, more suitable for cervical vertebrae.

Three options of breathing oxygen:

Oxygen mask

Oxygen headset

Oxygen nasal tube

Accessories

Oxygen concentrator BO5L/10L

One click start function

LED high-definition display

Real-time display

Optional timing function

Flow adjustment knob

Power outage fault alarm

Air compressor

One-key start function

Flow output up to 72Lmin

Optional negative ion

Filtration system

Air dehumidifier

Advanced semiconductor refrigeration technology

Reduces air temperature by 5°C

Reduces humidity by 5%

Able to operate stably in high-pressure

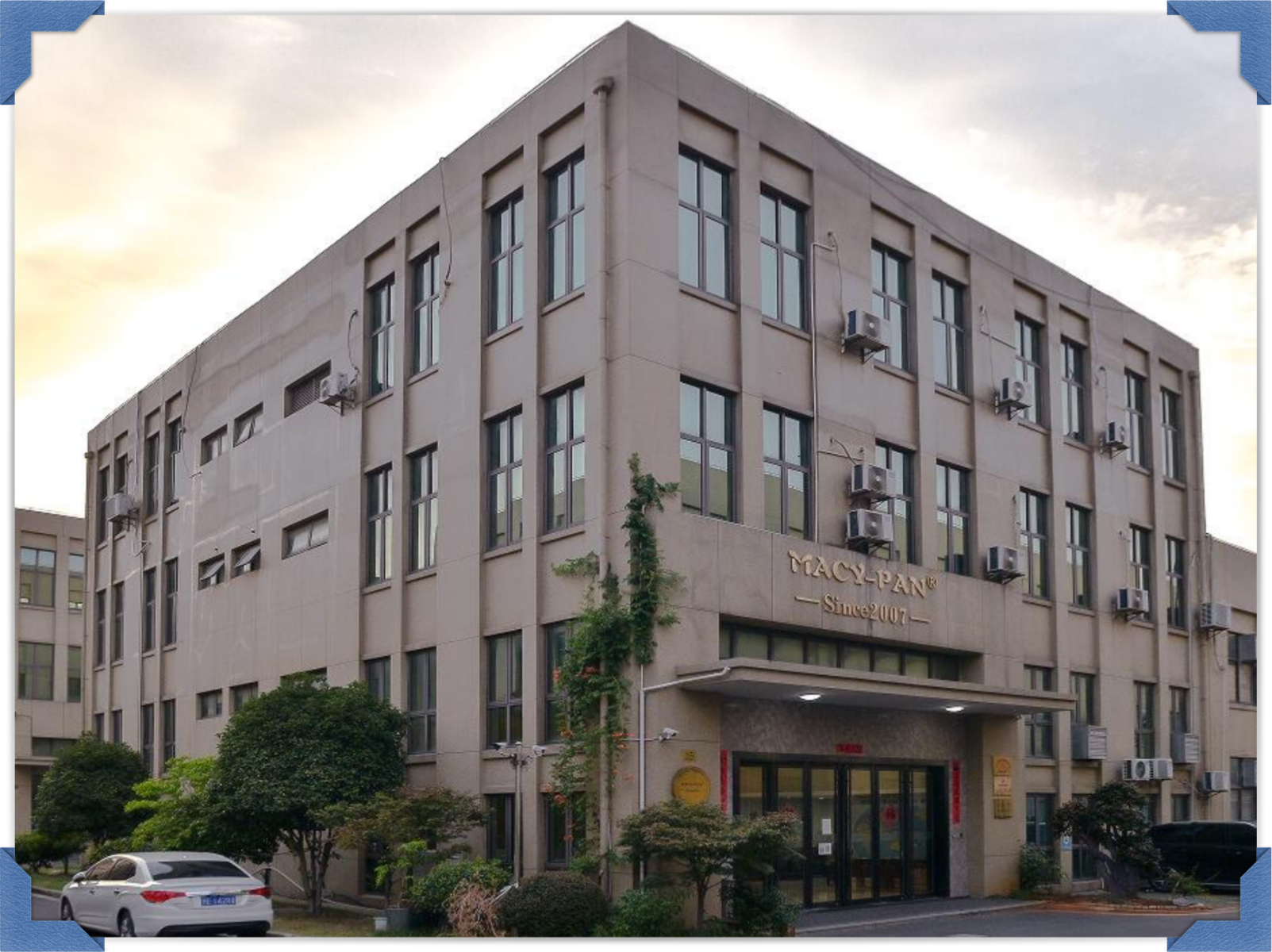

About Us

*The top 1 hyperbaric chamber manufacturer in Asia

*Export to more than 126 countries and regions

*Over 17 years of experience in designing, manufacturing and exporting hyperbaric chambers

*MACY-PAN has more than 150 employees, including technicians, sales, workers, etc. A throughput of 600 sets a month with a complete set of production line and testing equipments

Our Exhibition

Our Customer

Nemanja Majdov(Serbia) - World & European judo 90 kg class champion

Nemanja Majdov purchased a soft hyperbaric chamber 2016, followed by a hard hyperbaric chamber - HP1501 in July 2018.
From 2017 to 2020, he won two European Judo Championships in the 90kg class and two World Judo Championships in the 90kg class.
Another customer of MACY-PAN from Serbia, Jovana Prekovic, is a judoka with Majdov, and Majdov used MACY-PAN so well, purchase a soft hyperbaric chamber ST1700 and a hard hyperbaric chamber - HP1501 from MACY-PAN after Tokyo Olympic game in 2021.

Jovana Prekovic(Serbia) - 2020 Tokyo Olympic karate women's 61 kg class champion

After the Tokyo Olympics, Jovana Prekovic purchased one ST1700 and one HP1501 from MACY-PAN to eliminate sports fatigue, recover quickly, and reduce sports injuries.
Jovana Prekovic, while using the MACY-PAN hyperbaric chamber, also invited Tokyo Olympic Karate 55kg champion Ivet Goranova (Bulgaria) to experience hyperbaric oxygen therapy.

Steve Aoki(USA) - Famous DJ, actor in the world in the first half of 2024

Steve Aoki went to Bali for a vacation and experienced the hard hyperbaric oxygen chamber HP1501 made by MACY-PAN at a local anti-aging and recovery spa called "Rejuvo Life".
Steve Aoki consulted the staff of the store and learned that He used MACY-PAN hyperbaric chamber and purchased two hard hyperbaric chambers - HP2202 and He5000, He5000 is a hard type could sit-down and reclining treatment.

Vito Dragic(Slovenia) - Two-time European judo 100 kg class champion

Vitor Dragic competed in Judo from 2009-2019 at the European and world level for youth to adult age groups, winning the European champion in Judo 100 kg in 2016 and 2019.
In December 2019, we purchased a soft hyperbaric chamber - ST901 from MACY PAN, which is used to eliminate sports fatigue, quickly recover physical strength, and reduce sports injuries.
In early 2022, MACY-Pan sponsored a hard hyperbaric chamber - HP1501 for Dragic, who won the European runner-up in judo 100 kg that year.
